Solvent Free Epoxy Curing Agent DH-3239 Amine Hardener for Electronic Potting

Brand Name:	DAHUA
Model Number:	DH-3239
MOQ:	2000
Price:	2.6-3USD/KG

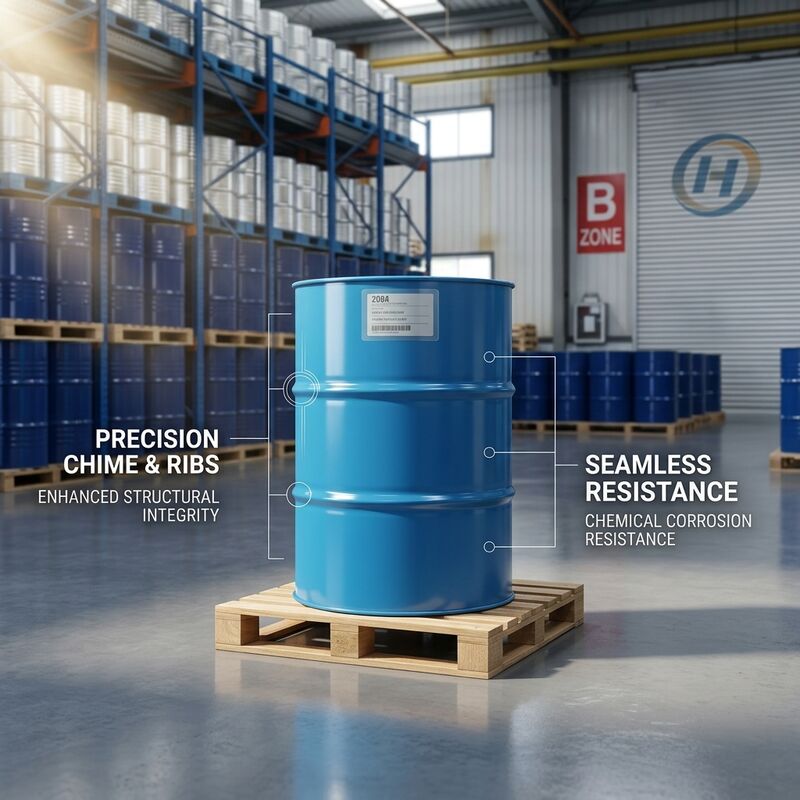

Packaging Details:	200kg/Drum
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Net Weight:

200KG/Drum

Application:

Industrial Floor Coating, Self-leveling Electronic Potting Epoxy Compounds

Appearance:

Colorless

Viscosity:

300-500 MPa﹥s At 25℃

Amine Value:

270-290 Mg KOH/g

Shelf Life:

0-35℃ With Sealing 24 Months

Highlight:

Solvent Free Potting System

Low Viscosity Deep Penetration

Controlled Exotherm Cure

Product Description

Solvent Free Epoxy Curing Agent DH-3239 Hardener

Developed for electronic potting and encapsulation, DH-3239 is a fully solid, solvent-free cycloaliphatic amine hardener. Its low viscosity lets the compound flow into tightly wound coils and narrow component gaps, while balanced reactivity keeps exotherm under control during cure. Finished castings deliver stable electrical insulation and reliable thermal performance.

Product Specifications

Property	Unit	Value
Model	-	DH-3239
Color	-	Gardner color; ≤2
Appearance	-	Colorless
Viscosit	mPa﹥s (25℃)	300-500
Amine Value	mg KOH/g	270-290
AHEW	g/mol	98
PHR	EEW ~ 190 g/eq	100:50
Density	g/cm3 (25℃)	0.98
Packing	-	200kg drum

Typical Performance

Pot life (LER EEW~190) 100g	25℃	30-50min
Phase II/III with 200μ wet film thickness	25℃	3-4 hours
Phase II/III with 200μ wet film thickness	25℃	18-24 hours
Phase II/III with 800μ wet film thickness	25℃	4-5 hours
Phase II/III with 800μ wet film thickness	25℃	24-32 hours

Key Applications

Electronic component potting
Transformer and coil encapsulation
Insulation sealants for PCB assemblies
Cast epoxy parts and bushings

Product Characteristics

100% solid formulation with no solvents
Deep penetration into dense coil windings
Controlled exotherm for safe casting
Stable insulation in electrical service
Thermally and dimensionally stable parts

Product Gallery

Frequently Asked Questions

Does DH-3239 cause amine blushing or water spotting?

The modified cycloaliphatic structure of DH-3239 prevents amine exudation and water spotting, so the coating surface remains clean and uniform after cure.

What is the shelf life and how should DH-3239 be stored?

Sealed in its original container at 0-35℃, DH-3239 keeps for 24 months. Keep drums tightly closed and away from direct sunlight and moisture.

What packaging options are available for DH-3239?

The standard package is a 200kg drum. We also support flexible packaging configurations for bulk purchasing and export shipment.

Is DH-3239 free of nonyl phenol?

Yes, DH-3239 is a nonyl phenol free formulation, meeting modern environmental and safety requirements for coating raw materials.

What curing schedule is needed to reach full performance?

Full properties develop after roughly 7 days at 25℃. Post-curing at 60-80℃ for several hours can speed up the process when faster turnaround is required.

Which substrates can DH-3239 epoxy systems bond to?

DH-3239 systems bond firmly to concrete, cement mortar, steel, aluminum and most prepared industrial substrates, provided the surface is clean, dry and properly primed.
